NSVM1MA152WAT1G

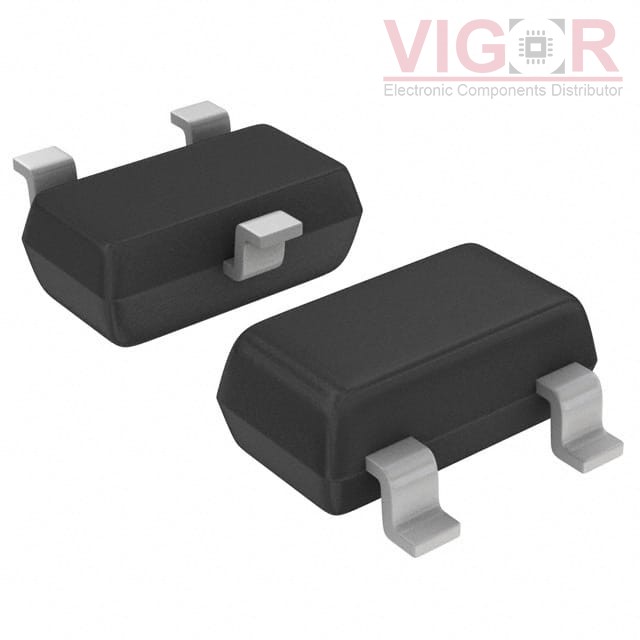

Image is for reference,
please contact us to get the real picture

Part No :: NSVM1MA152WAT1G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: DIODE SW 80V DUAL CA SC59-3

Catalog: Diodes - Rectifiers - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: NSVM1MA152WAT1G PDF

Availability: 0 pieces

Unit Price: ~~$0.07346~~

Current price of NSVM1MA152WAT1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NSVM1MA152WAT1G Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Configuration:	1 Pair Common Anode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	80 V
Current - Average Rectified (Io) (per Diode):	100mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.2 V @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	10 ns
Current - Reverse Leakage @ Vr:	100 nA @ 75 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SC-59

Please confirm the specifications of the products when ordering.
