80CNQ045S2

80CNQ045S2

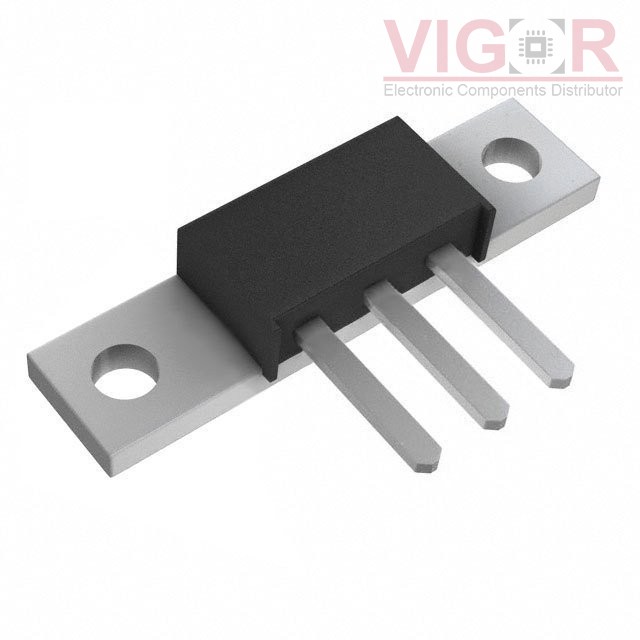

Image is for reference,
please contact us to get the real picture

Part No :

80CNQ045S2

Manufacturer
SMC Diode Solutions
Description
DIODE ARRAY SCHOTTKY 45V PRM2
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
80CNQ045S2 PDF
Availability
0 pieces
Unit Price
$12.24600

Current price of 80CNQ045S2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

80CNQ045S2 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):45 V
Current - Average Rectified (Io) (per Diode):80A
Voltage - Forward (Vf) (Max) @ If:660 mV @ 80 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:5 mA @ 45 V
Operating Temperature - Junction:-55°C ~ 150°C
Mounting Type:Chassis Mount
Package / Case:PRM2
Supplier Device Package:PRM2
