MA4X72600L

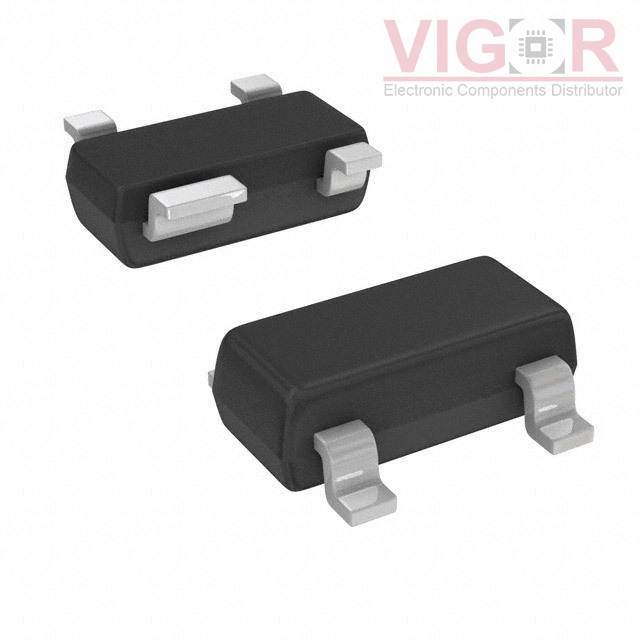

Image is for reference,
please contact us to get the real picture

Part No :: MA4X72600L

Manufacturer: Panasonic

Description: DIODE ARRAY SCHOTTKY 30V MINI4

Catalog: Diodes - Rectifiers - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: MA4X72600L PDF

Availability: 4505 pieces

Unit Price: ~~$0.36000~~

Current price of MA4X72600L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MA4X72600L Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Diode Configuration:	2 Independent
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io) (per Diode):	200mA
Voltage - Forward (Vf) (Max) @ If:	550 mV @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	3 ns
Current - Reverse Leakage @ Vr:	50 µA @ 30 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	TO-253-4, TO-253AA
Supplier Device Package:	Mini4-G1

Please confirm the specifications of the products when ordering.
