NTE6230

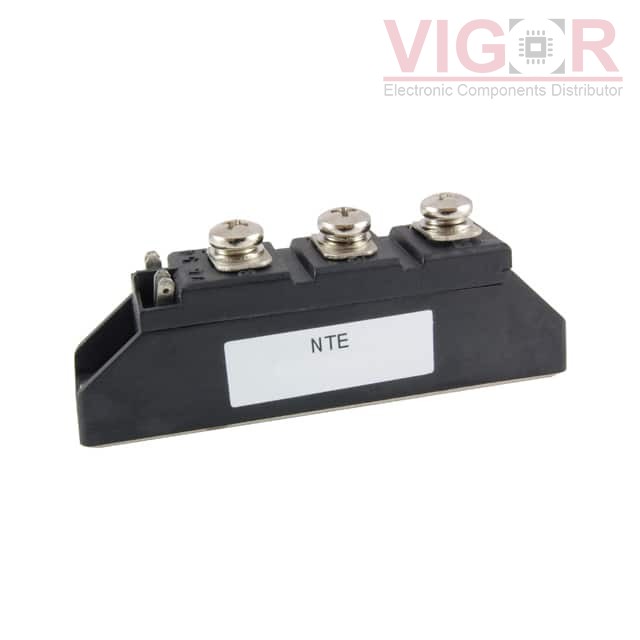

Image is for reference,
please contact us to get the real picture

Part No :: NTE6230

Manufacturer: NTE Electronics, Inc.

Description: SCR 1200V 90A MODULE

Catalog: Diodes - Rectifiers - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: NTE6230 PDF

Availability: 72 pieces

Unit Price: ~~$80.85000~~

Current price of NTE6230 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE6230 Specifications

Type	Description
Series:	*
Package:	Bag
Part Status:	Active
Diode Configuration:	1 Pair Series Connection
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	-
Current - Average Rectified (Io) (per Diode):	90A
Voltage - Forward (Vf) (Max) @ If:	1.33 V @ 270 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	8 µA @ 1200 V
Operating Temperature - Junction:	-40°C ~ 125°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

Please confirm the specifications of the products when ordering.
