BAV99QAZ

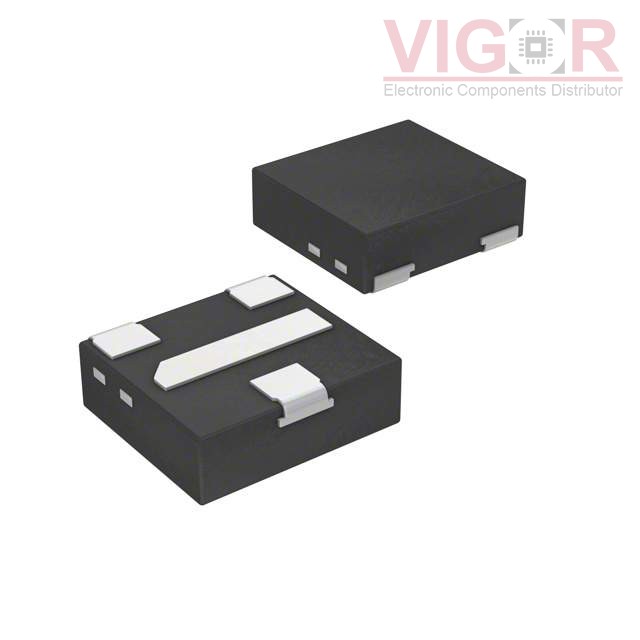

Image is for reference,
please contact us to get the real picture

Part No :: BAV99QAZ

Manufacturer: Nexperia

Description: DIODE HS SW 90V 170MA SOT1215

Catalog: Diodes - Rectifiers - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: BAV99QAZ PDF

Availability: 0 pieces

Unit Price: ~~$0.25000~~

Current price of BAV99QAZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAV99QAZ Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Configuration:	1 Pair Series Connection
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	90 V
Current - Average Rectified (Io) (per Diode):	170mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	500 nA @ 80 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	3-XDFN Exposed Pad
Supplier Device Package:	DFN1010D-3

Please confirm the specifications of the products when ordering.
