DB5H206K0L

DB5H206K0L

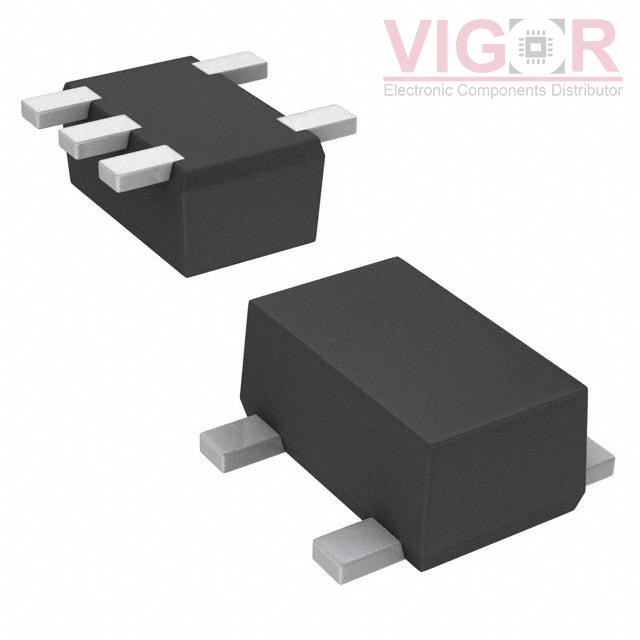

Image is for reference,
please contact us to get the real picture

Part No :

DB5H206K0L

Manufacturer
Panasonic
Description
DIODE ARRAY SCHOTTKY 20V WSMINI5
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
DB5H206K0L PDF
Availability
10 pieces
Unit Price
$0.63000

Current price of DB5H206K0L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DB5H206K0L Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Discontinued at Digi-Key
Diode Configuration:2 Independent
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):20 V
Current - Average Rectified (Io) (per Diode):1A
Voltage - Forward (Vf) (Max) @ If:450 mV @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):6 ns
Current - Reverse Leakage @ Vr:100 µA @ 20 V
Operating Temperature - Junction:125°C (Max)
Mounting Type:Surface Mount
Package / Case:6-SMD (5 Leads), Flat Lead
Supplier Device Package:WSMINI5-F1-B
