69CNQ135SL

69CNQ135SL

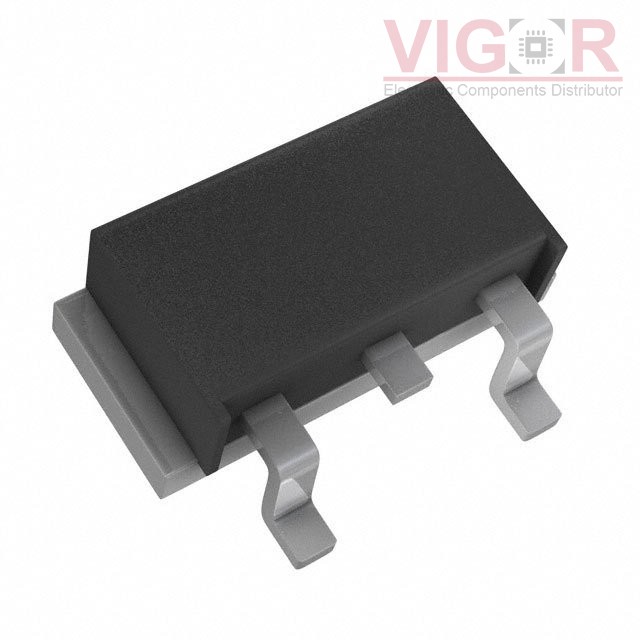

Image is for reference,
please contact us to get the real picture

Part No :

69CNQ135SL

Manufacturer
SMC Diode Solutions
Description
DIODE SCHOTTKY 135V 30A PRM3-SL
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
69CNQ135SL PDF
Availability
0 pieces
Unit Price
$16.54980

Current price of 69CNQ135SL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

69CNQ135SL Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):135 V
Current - Average Rectified (Io) (per Diode):30A
Voltage - Forward (Vf) (Max) @ If:870 mV @ 30 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:1.5 mA @ 135 V
Operating Temperature - Junction:-55°C ~ 175°C
Mounting Type:Surface Mount
Package / Case:PRM3-SL
Supplier Device Package:PRM3-SL
