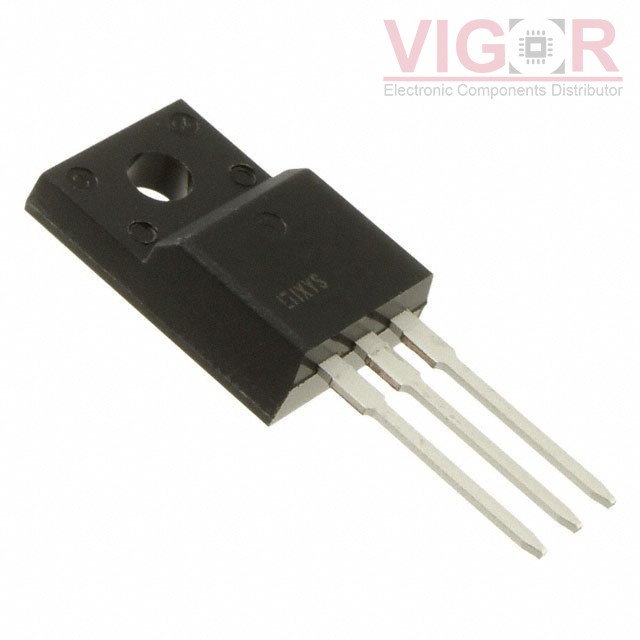

DPG20C300PN

DPG20C300PN

Image is for reference,
please contact us to get the real picture

Part No :

DPG20C300PN

Manufacturer
Wickmann / Littelfuse
Description
DIODE ARRAY GP 300V 10A TO220FP
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
DPG20C300PN PDF
Availability
950 pieces
Unit Price
$1.79000

Current price of DPG20C300PN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPG20C300PN Specifications
Type Description
Series:HiPerFRED²™
Package:Tube
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):300 V
Current - Average Rectified (Io) (per Diode):10A
Voltage - Forward (Vf) (Max) @ If:1.27 V @ 10 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):35 ns
Current - Reverse Leakage @ Vr:1 µA @ 300 V
Operating Temperature - Junction:-55°C ~ 175°C
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack, Isolated Tab
Supplier Device Package:TO-220ABFP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 80CNQ045

80CNQ045

DIODE SCHOTTKY 45V 40A PRM2

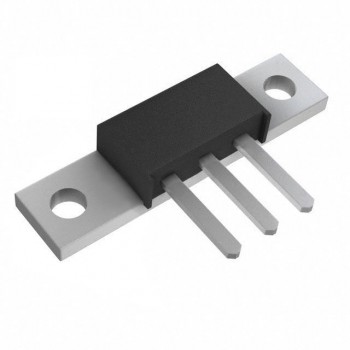

HOT 82CNQ030

82CNQ030

DIODE SCHOTTKY 30V 40A PRM2

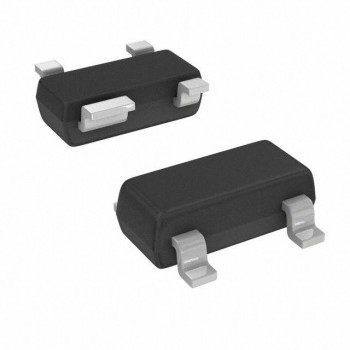

HOT BAS28,235
