BAT54S-E3-18

BAT54S-E3-18

Image is for reference,
please contact us to get the real picture

Part No :

BAT54S-E3-18

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE ARRAY SCHOTTKY 30V SOT23
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
BAT54S-E3-18 PDF
Availability
11735 pieces
Unit Price
$0.33000

Current price of BAT54S-E3-18 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAT54S-E3-18 Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Configuration:1 Pair Series Connection
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io) (per Diode):200mA (DC)
Voltage - Forward (Vf) (Max) @ If:800 mV @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):5 ns
Current - Reverse Leakage @ Vr:2 µA @ 25 V
Operating Temperature - Junction:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CMPSH-3A TR PBFREE

CMPSH-3A TR PBFREE

DIODE ARRAY SCHOTTKY 30V SOT23
HOT STPS640CBY-TR

STPS640CBY-TR

DIODE ARRAY SCHOTTKY 40V 3A DPAK

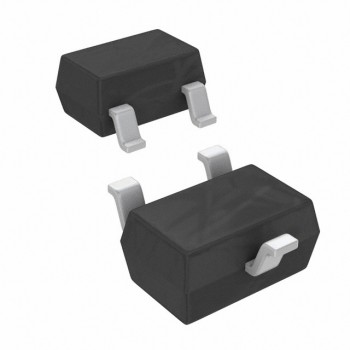

HOT BAT54AWTR
