BAT54SDW-TP

BAT54SDW-TP

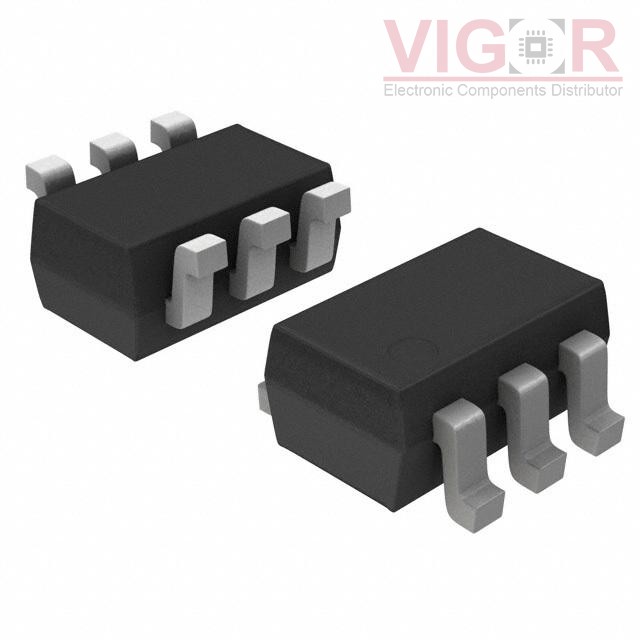

Image is for reference,
please contact us to get the real picture

Part No :

BAT54SDW-TP

Manufacturer
Micro Commercial Components (MCC)
Description
DIODE ARRAY SCHOTTKY 30V SOT363
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
BAT54SDW-TP PDF
Availability
3263 pieces
Unit Price
$0.49000

Current price of BAT54SDW-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAT54SDW-TP Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Configuration:2 Pair Series Connection
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io) (per Diode):200mA (DC)
Voltage - Forward (Vf) (Max) @ If:1 V @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):5 ns
Current - Reverse Leakage @ Vr:2 µA @ 25 V
Operating Temperature - Junction:-65°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-TSSOP, SC-88, SOT-363
Supplier Device Package:SOT-363
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT WNS20S100CXQ

WNS20S100CXQ

SCHOTTKY POWER DIODE
HOT SBR20A200CTFP

SBR20A200CTFP

DIODE ARRAY SBR 200V 10A ITO220

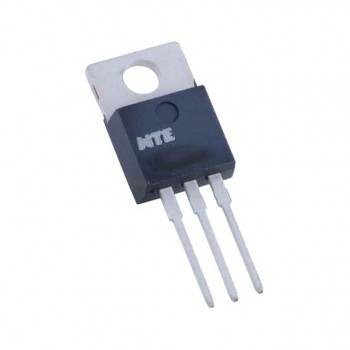

HOT NTE624
