STTH8003CY

STTH8003CY

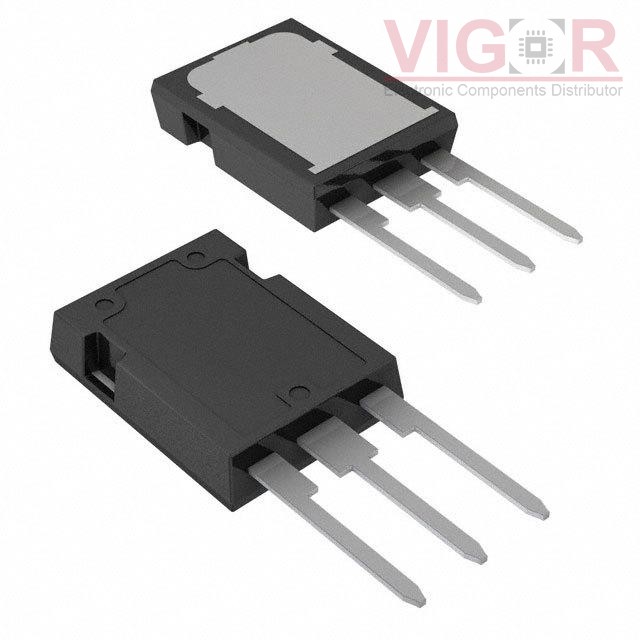

Image is for reference,
please contact us to get the real picture

Part No :

STTH8003CY

Manufacturer
STMicroelectronics
Description
DIODE ARRAY GP 300V 40A MAX247
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
STTH8003CY PDF
Availability
553 pieces
Unit Price
$10.78000

Current price of STTH8003CY is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STTH8003CY Specifications
Type Description
Series:Q Automotive
Package:Tube
Part Status:Obsolete
Diode Configuration:1 Pair Common Cathode
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):300 V
Current - Average Rectified (Io) (per Diode):40A
Voltage - Forward (Vf) (Max) @ If:1.25 V @ 40 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):60 ns
Current - Reverse Leakage @ Vr:80 µA @ 300 V
Operating Temperature - Junction:175°C (Max)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:MAX247™
