BAT54CV,115

BAT54CV,115

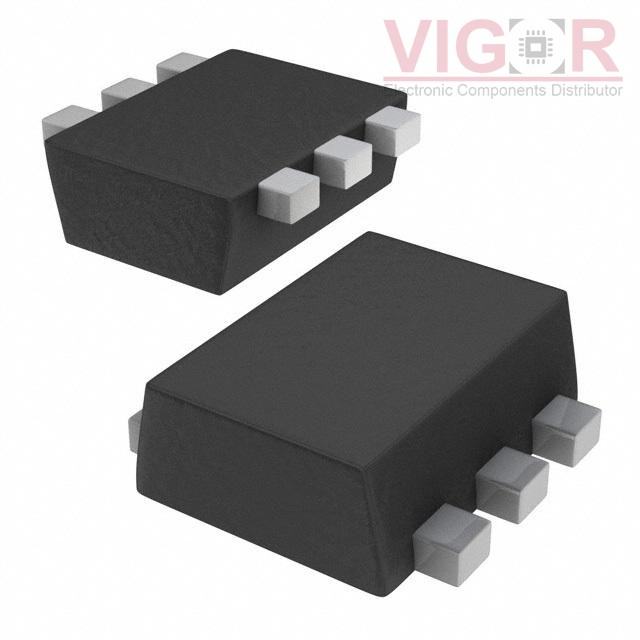

Image is for reference,
please contact us to get the real picture

Part No :

BAT54CV,115

Manufacturer
Nexperia
Description
DIODE ARRAY SCHOTTKY 30V SOT666
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
BAT54CV,115 PDF
Availability
9219 pieces
Unit Price
$0.40000

Current price of BAT54CV,115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAT54CV,115 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Configuration:2 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io) (per Diode):200mA (DC)
Voltage - Forward (Vf) (Max) @ If:800 mV @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:2 µA @ 25 V
Operating Temperature - Junction:125°C (Max)
Mounting Type:Surface Mount
Package / Case:SOT-563, SOT-666
Supplier Device Package:SOT-666
