BAV756DW

BAV756DW

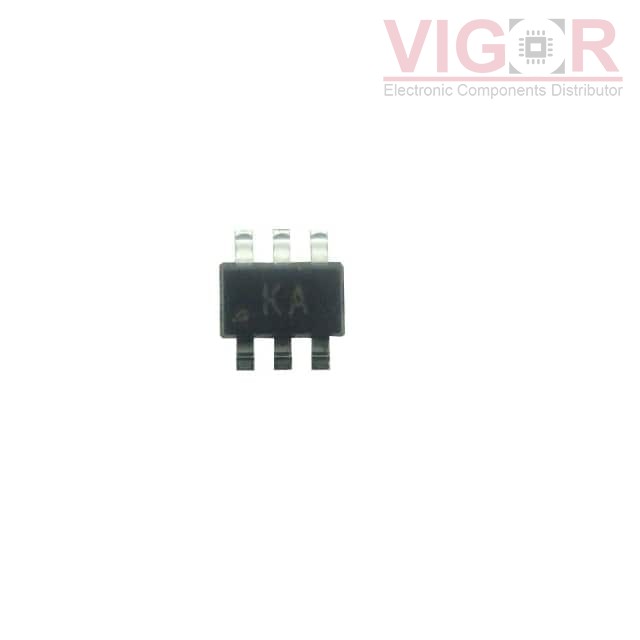

Image is for reference,
please contact us to get the real picture

Part No :

BAV756DW

Manufacturer
DComponents
Description
DIODE ARRAY GP 90V 150MA SOT363
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
BAV756DW PDF
Availability
0 pieces
Unit Price
$0.07105

Current price of BAV756DW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAV756DW Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Configuration:1 Pair Common Anode
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):90 V
Current - Average Rectified (Io) (per Diode):150mA
Voltage - Forward (Vf) (Max) @ If:1.25 V @ 150 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):4 ns
Current - Reverse Leakage @ Vr:500 nA @ 80 V
Operating Temperature - Junction:-55°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:6-TSSOP, SC-88, SOT-363
Supplier Device Package:SOT-363
