STPS80L60CY

STPS80L60CY

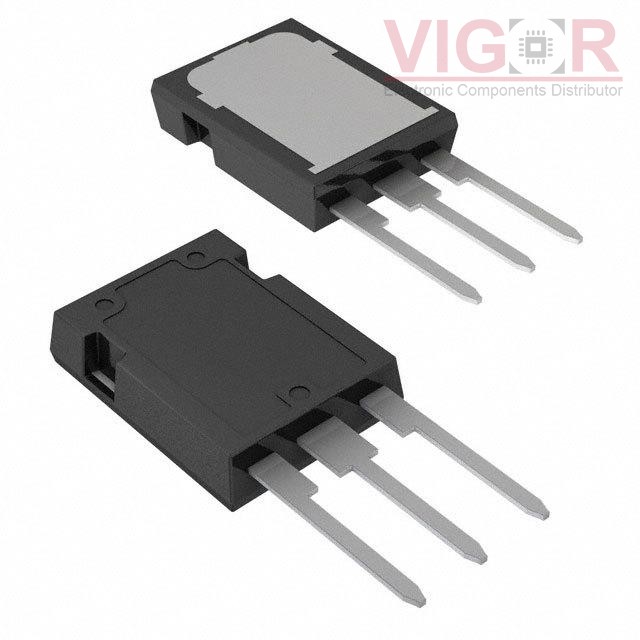

Image is for reference,
please contact us to get the real picture

Part No :

STPS80L60CY

Manufacturer
STMicroelectronics
Description
DIODE ARRAY SCHOTTKY 60V MAX247
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
STPS80L60CY PDF
Availability
121 pieces
Unit Price
$13.63000

Current price of STPS80L60CY is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STPS80L60CY Specifications
Type Description
Series:Q Automotive
Package:Tube
Part Status:Obsolete
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):60 V
Current - Average Rectified (Io) (per Diode):40A
Voltage - Forward (Vf) (Max) @ If:570 mV @ 40 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:1.8 mA @ 60 V
Operating Temperature - Junction:150°C (Max)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:MAX247™
