GSXD080A015S1-D3

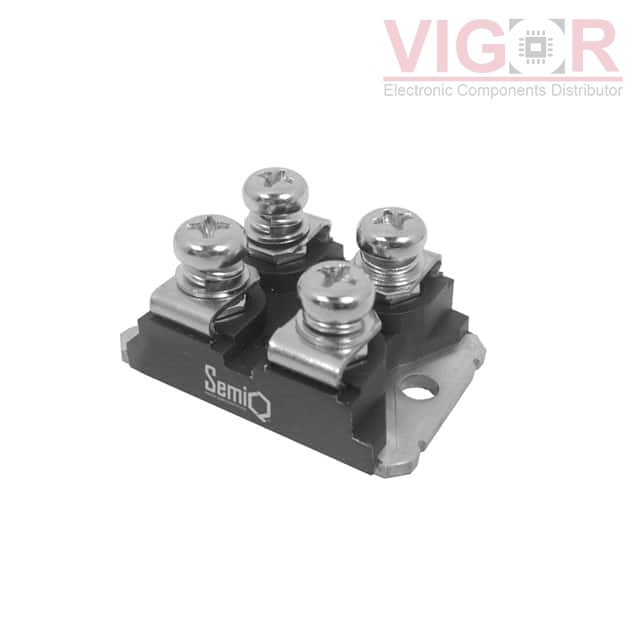

Image is for reference,
please contact us to get the real picture

Part No :: GSXD080A015S1-D3

Manufacturer: SemiQ

Description: DIODE SCHOTTKY 150V 80A SOT227

Catalog: Diodes - Rectifiers - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: GSXD080A015S1-D3 PDF

Availability: 96 pieces

Unit Price: ~~$20.64000~~

Current price of GSXD080A015S1-D3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

GSXD080A015S1-D3 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Diode Configuration:	2 Independent
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	150 V
Current - Average Rectified (Io) (per Diode):	80A
Voltage - Forward (Vf) (Max) @ If:	880 mV @ 80 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	3 mA @ 150 V
Operating Temperature - Junction:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	SOT-227-4, miniBLOC
Supplier Device Package:	SOT-227

Please confirm the specifications of the products when ordering.
