SBE808-TL-W

SBE808-TL-W

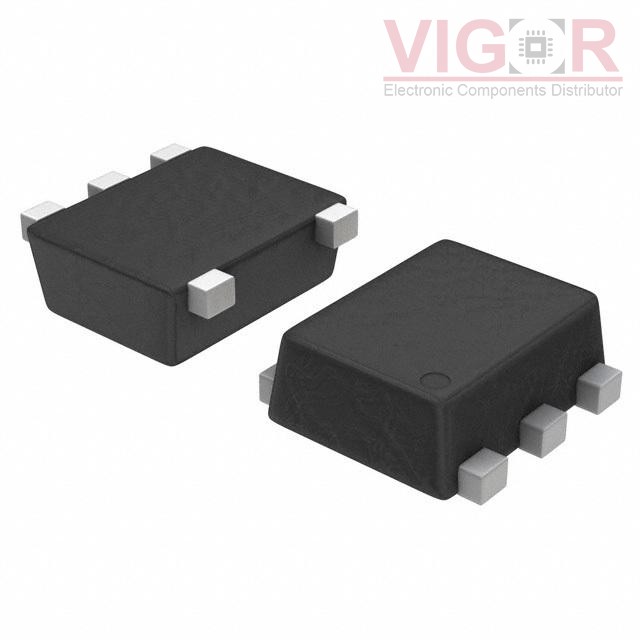

Image is for reference,
please contact us to get the real picture

Part No :

SBE808-TL-W

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
DIODE ARRAY SCHOTTKY 15V 5MCPH
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 20 - Aug 24 2025
DataSheet
SBE808-TL-W PDF
Availability
298121000 pieces
Unit Price
$0.57000

Current price of SBE808-TL-W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SBE808-TL-W Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Configuration:2 Independent
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):15 V
Current - Average Rectified (Io) (per Diode):1A
Voltage - Forward (Vf) (Max) @ If:540 mV @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):10 ns
Current - Reverse Leakage @ Vr:3 µA @ 6 V
Operating Temperature - Junction:-55°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:6-SMD (5 Leads), Flat Lead
Supplier Device Package:5-MCPH
