DB3J316F0L

DB3J316F0L

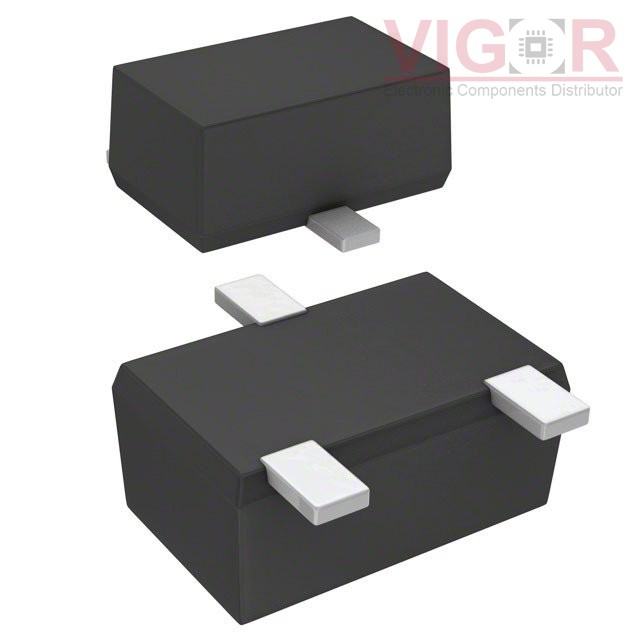

Image is for reference,
please contact us to get the real picture

Part No :

DB3J316F0L

Manufacturer
Panasonic
Description
DIODE ARRAY SCHOTTKY 30V SMINI3
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
DB3J316F0L PDF
Availability
0 pieces
Unit Price
$0.35000

Current price of DB3J316F0L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DB3J316F0L Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Discontinued at Digi-Key
Diode Configuration:1 Pair Series Connection
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io) (per Diode):100mA
Voltage - Forward (Vf) (Max) @ If:550 mV @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):800 ps
Current - Reverse Leakage @ Vr:15 µA @ 30 V
Operating Temperature - Junction:125°C (Max)
Mounting Type:Surface Mount
Package / Case:SC-85
Supplier Device Package:SMini3-F2-B
