STPS10SM80CR

STPS10SM80CR

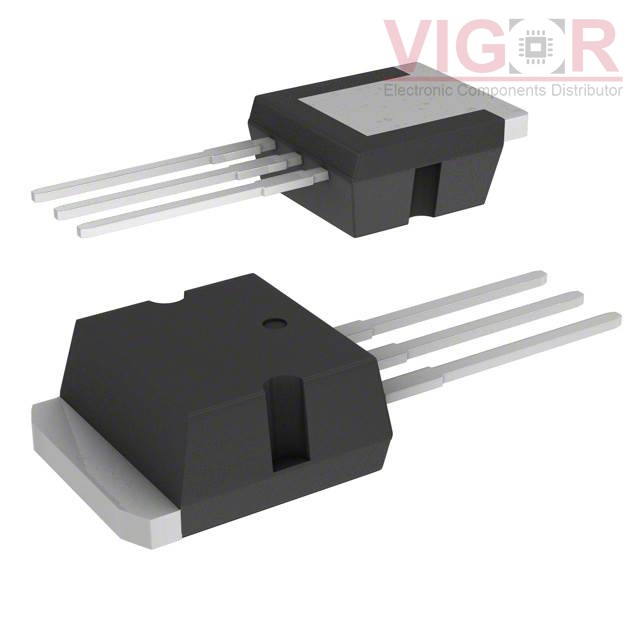

Image is for reference,
please contact us to get the real picture

Part No :

STPS10SM80CR

Manufacturer
STMicroelectronics
Description
DIODE ARRAY SCHOTTKY 80V I2PAK
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
STPS10SM80CR PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of STPS10SM80CR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STPS10SM80CR Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):80 V
Current - Average Rectified (Io) (per Diode):5A
Voltage - Forward (Vf) (Max) @ If:745 mV @ 5 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:15 µA @ 80 V
Operating Temperature - Junction:175°C (Max)
Mounting Type:Through Hole
Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package:I2PAK
