NTSJ40100CTG

NTSJ40100CTG

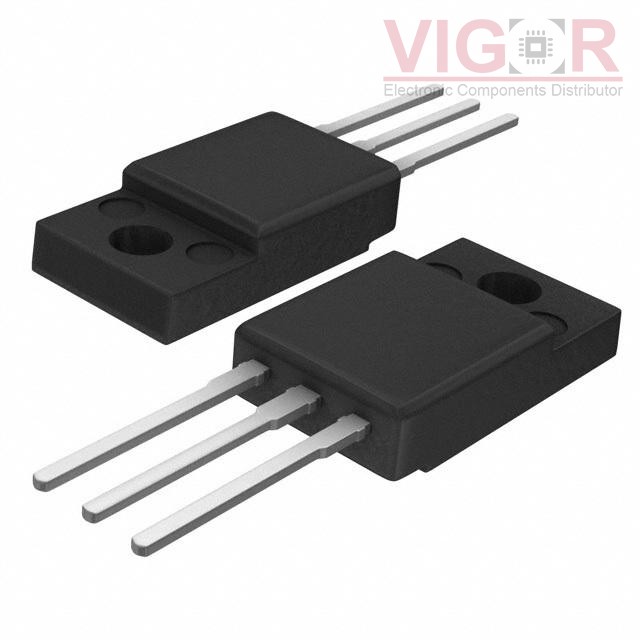

Image is for reference,
please contact us to get the real picture

Part No :

NTSJ40100CTG

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
DIODE ARRAY SCHOTTKY 100V TO220F
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
NTSJ40100CTG PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of NTSJ40100CTG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTSJ40100CTG Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):100 V
Current - Average Rectified (Io) (per Diode):20A
Voltage - Forward (Vf) (Max) @ If:800 mV @ 20 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:12 µA @ 70 V
Operating Temperature - Junction:-40°C ~ 150°C
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220 Full Pack
