115CNQ015A

115CNQ015A

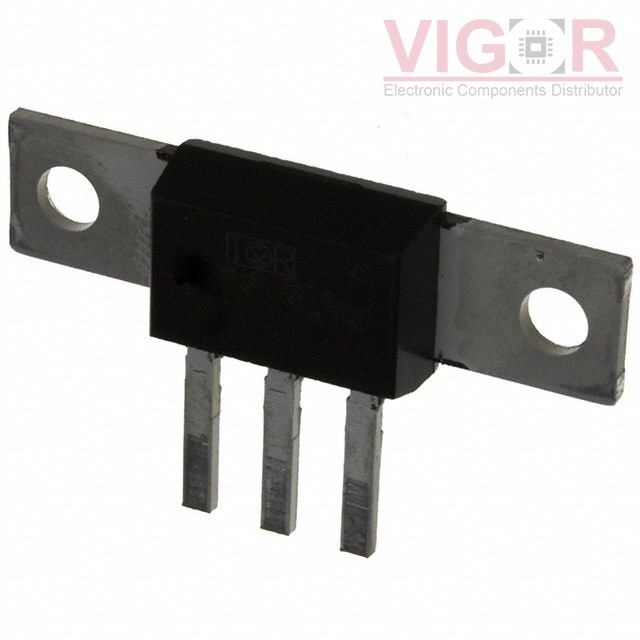

Image is for reference,
please contact us to get the real picture

Part No :

115CNQ015A

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE ARRAY SCHOTTKY 15V D618
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
115CNQ015A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 115CNQ015A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

115CNQ015A Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):15 V
Current - Average Rectified (Io) (per Diode):55A
Voltage - Forward (Vf) (Max) @ If:370 mV @ 55 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:20 mA @ 15 V
Operating Temperature - Junction:-55°C ~ 125°C
Mounting Type:Chassis Mount
Package / Case:D-61-8
Supplier Device Package:D-61-8
