BAS69-09P6FILM

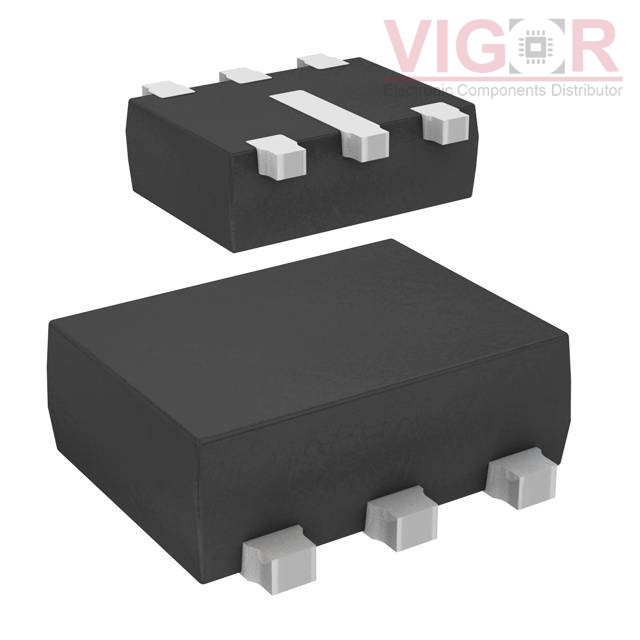

Image is for reference,
please contact us to get the real picture

Part No :: BAS69-09P6FILM

Manufacturer: STMicroelectronics

Description: DIODE ARRAY SCHOTTKY 15V SOT666

Catalog: Diodes - Rectifiers - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: BAS69-09P6FILM PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of BAS69-09P6FILM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAS69-09P6FILM Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Diode Configuration:	2 Independent
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	15 V
Current - Average Rectified (Io) (per Diode):	10mA (DC)
Voltage - Forward (Vf) (Max) @ If:	570 mV @ 10 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	230 nA @ 15 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	SOT-563, SOT-666
Supplier Device Package:	SOT-666
