BAT54SD REG

BAT54SD REG

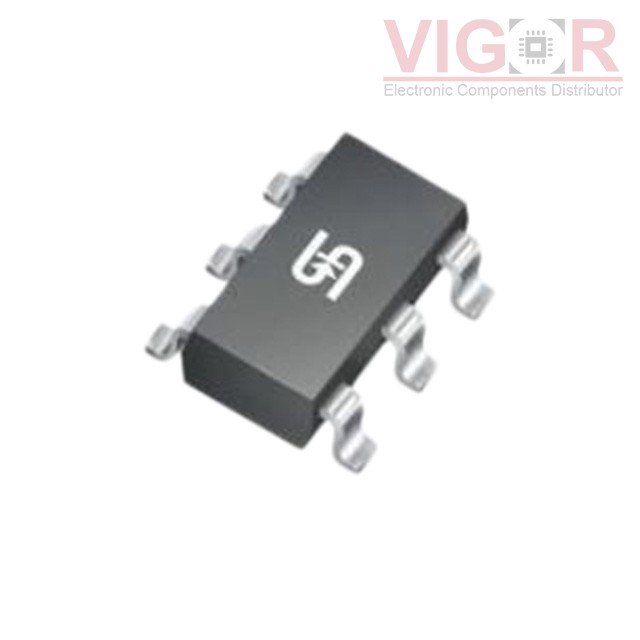

Image is for reference,
please contact us to get the real picture

Part No :

BAT54SD REG

Manufacturer
TSC (Taiwan Semiconductor)
Description
DIODE ARRAY SCHOTTKY 30V SOT363
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
BAT54SD REG PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of BAT54SD REG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAT54SD REG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Configuration:2 Pair Series Connection
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io) (per Diode):200mA (DC)
Voltage - Forward (Vf) (Max) @ If:1 V @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):5 ns
Current - Reverse Leakage @ Vr:2 µA @ 25 V
Operating Temperature - Junction:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-TSSOP, SC-88, SOT-363
Supplier Device Package:SOT-363
