MA4X72400L

MA4X72400L

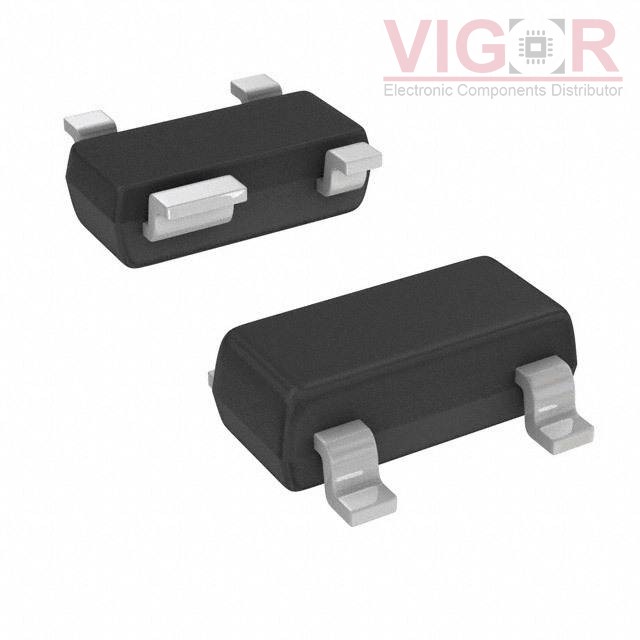

Image is for reference,
please contact us to get the real picture

Part No :

MA4X72400L

Manufacturer
Panasonic
Description
DIODE ARRAY SCHOTTKY 30V MINI4
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
MA4X72400L PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MA4X72400L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MA4X72400L Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Diode Configuration:2 Independent
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io) (per Diode):200mA
Voltage - Forward (Vf) (Max) @ If:550 mV @ 200 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):3 ns
Current - Reverse Leakage @ Vr:50 µA @ 30 V
Operating Temperature - Junction:150°C (Max)
Mounting Type:Surface Mount
Package / Case:TO-253-4, TO-253AA
Supplier Device Package:Mini4-G1
