SBE805-S-TL-W

SBE805-S-TL-W

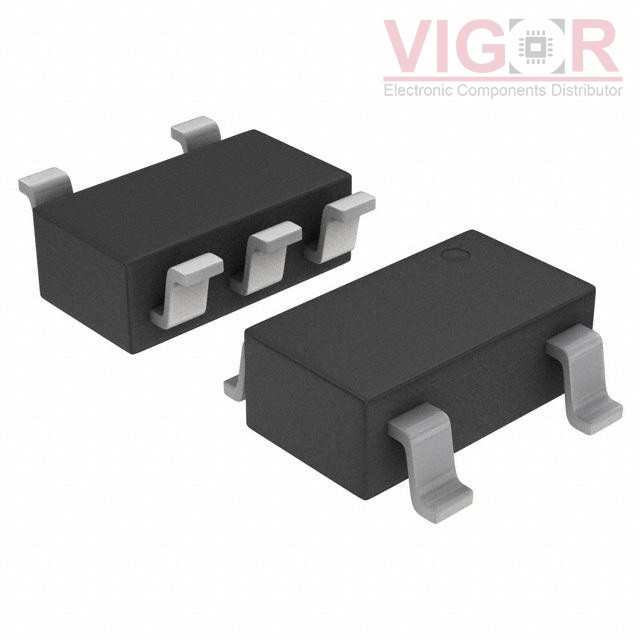

Image is for reference,
please contact us to get the real picture

Part No :

SBE805-S-TL-W

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
DIODE ARRAY SCHOTTKY 30V 5CPH
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
SBE805-S-TL-W PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SBE805-S-TL-W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SBE805-S-TL-W Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Diode Configuration:2 Independent
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io) (per Diode):500mA
Voltage - Forward (Vf) (Max) @ If:550 mV @ 500 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):10 ns
Current - Reverse Leakage @ Vr:30 µA @ 15 V
Operating Temperature - Junction:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:SC-74A, SOT-753
Supplier Device Package:5-CPH
