VS-20CTH03-N3

VS-20CTH03-N3

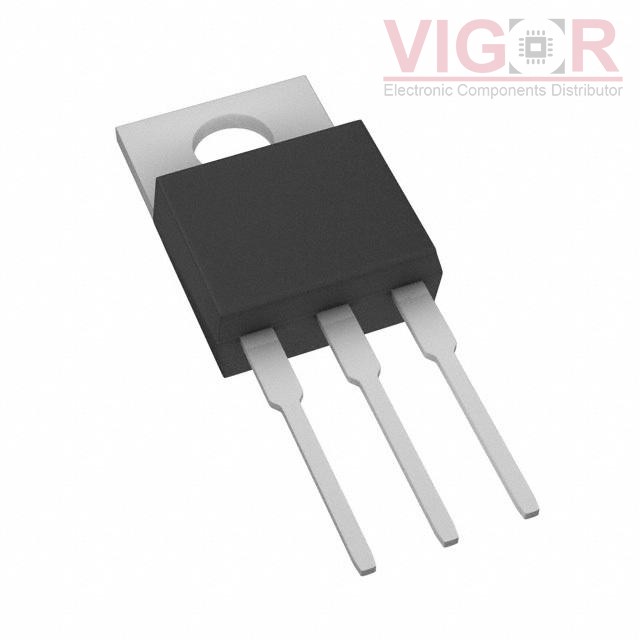

Image is for reference,
please contact us to get the real picture

Part No :

VS-20CTH03-N3

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE ARRAY GP 300V 10A TO220AB
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
VS-20CTH03-N3 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of VS-20CTH03-N3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VS-20CTH03-N3 Specifications
Type Description
Series:FRED Pt®
Package:Tube
Part Status:Obsolete
Diode Configuration:1 Pair Common Cathode
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):300 V
Current - Average Rectified (Io) (per Diode):10A
Voltage - Forward (Vf) (Max) @ If:1.25 V @ 10 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):35 ns
Current - Reverse Leakage @ Vr:20 µA @ 300 V
Operating Temperature - Junction:175°C (Max)
Mounting Type:Through Hole
Package / Case:TO-220-3
Supplier Device Package:TO-220AB
