163CNQ100

163CNQ100

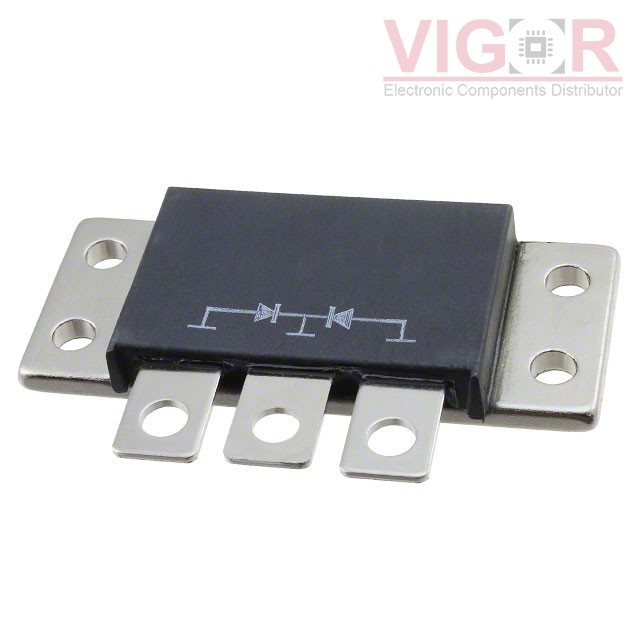

Image is for reference,
please contact us to get the real picture

Part No :

163CNQ100

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE MODULE 100V 80A TO249AA
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
163CNQ100 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 163CNQ100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

163CNQ100 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):100 V
Current - Average Rectified (Io) (per Diode):80A
Voltage - Forward (Vf) (Max) @ If:980 mV @ 80 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:1.5 mA @ 100 V
Operating Temperature - Junction:-55°C ~ 175°C
Mounting Type:Screw Mount
Package / Case:TO-249AA
Supplier Device Package:TO-249AA
