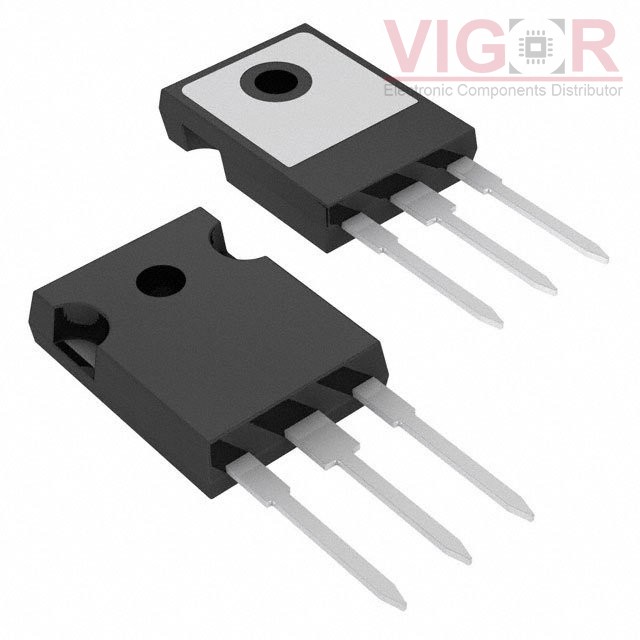

63CPQ100

63CPQ100

Image is for reference,
please contact us to get the real picture

Part No :

63CPQ100

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE ARRAY SCHOTTKY 100V TO247
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
63CPQ100 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 63CPQ100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

63CPQ100 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):100 V
Current - Average Rectified (Io) (per Diode):30A
Voltage - Forward (Vf) (Max) @ If:770 mV @ 30 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:300 µA @ 100 V
Operating Temperature - Junction:-55°C ~ 175°C
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247AC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 6CWQ06FN

6CWQ06FN

DIODE ARRAY SCHOTTKY 60V DPAK

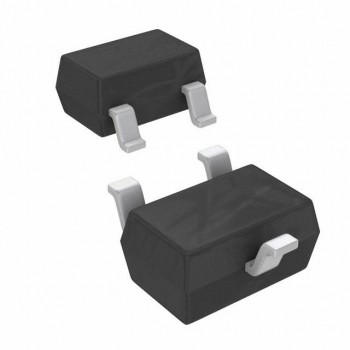

HOT BAW56WE6327HTSA1
