STPS20M120SR

STPS20M120SR

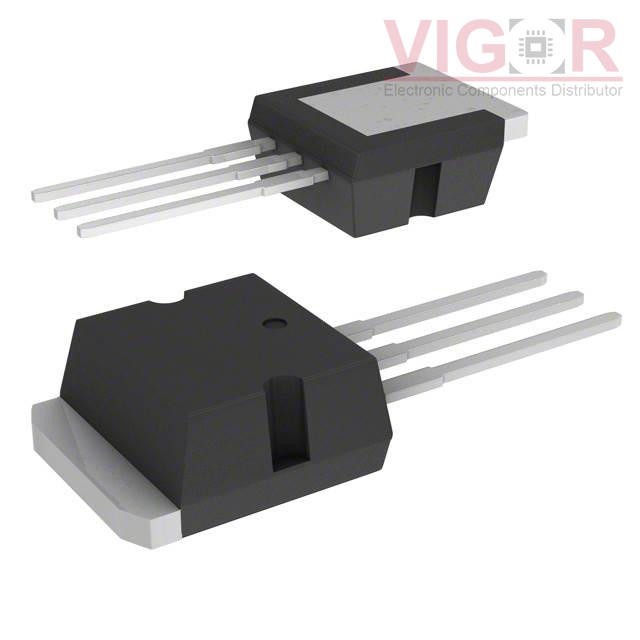

Image is for reference,
please contact us to get the real picture

Part No :

STPS20M120SR

Manufacturer
STMicroelectronics
Description
DIODE SCHOTTKY 120V 20A I2PAK
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
STPS20M120SR PDF
Availability
0 pieces
Unit Price
$1.78000

Current price of STPS20M120SR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STPS20M120SR Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):120 V
Current - Average Rectified (Io):20A
Voltage - Forward (Vf) (Max) @ If:840 mV @ 20 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:275 µA @ 120 V
Capacitance @ Vr, F:-
Mounting Type:Through Hole
Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package:I2PAK
Operating Temperature - Junction:150°C (Max)
