V1PM10-M3/H

V1PM10-M3/H

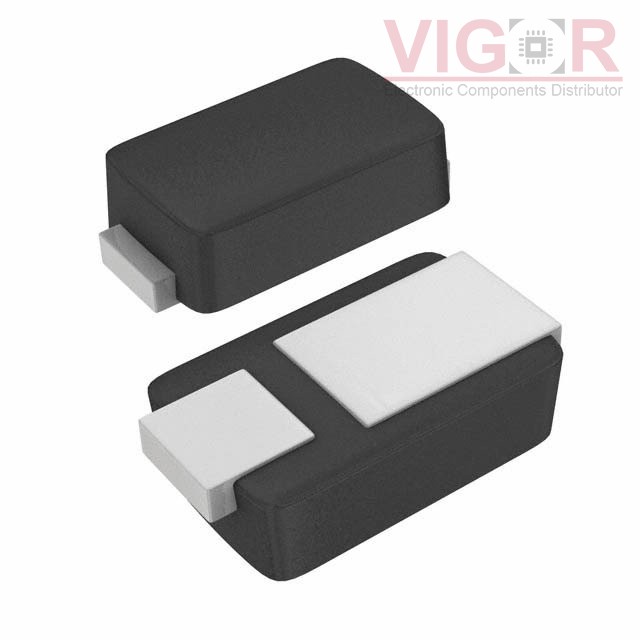

Image is for reference,
please contact us to get the real picture

Part No :

V1PM10-M3/H

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE SCHOTTKY 100V 1A MICROSMP
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 12 - Jul 16 2025
DataSheet
V1PM10-M3/H PDF
Availability
4000 pieces
Unit Price
$0.47000

Current price of V1PM10-M3/H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

V1PM10-M3/H Specifications
Type Description
Series:eSMP®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):100 V
Current - Average Rectified (Io):1A
Voltage - Forward (Vf) (Max) @ If:770 mV @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:50 µA @ 100 V
Capacitance @ Vr, F:100pF @ 4V, 1MHz
Mounting Type:Surface Mount
Package / Case:DO-219AD
Supplier Device Package:MicroSMP (DO-219AD)
Operating Temperature - Junction:-40°C ~ 175°C
