BAT54LP-7B

BAT54LP-7B

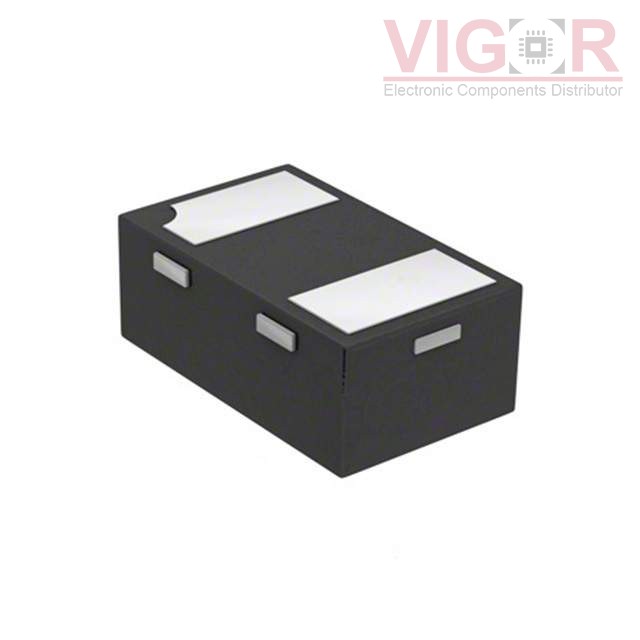

Image is for reference,
please contact us to get the real picture

Part No :

BAT54LP-7B

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
DIODE SCHOTTKY 30V 200MA 2DFN
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
BAT54LP-7B PDF
Availability
6285 pieces
Unit Price
$0.44000

Current price of BAT54LP-7B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAT54LP-7B Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io):200mA
Voltage - Forward (Vf) (Max) @ If:1 V @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):5 ns
Current - Reverse Leakage @ Vr:2 µA @ 25 V
Capacitance @ Vr, F:10pF @ 1V, 1MHz
Mounting Type:Surface Mount
Package / Case:0402 (1006 Metric)
Supplier Device Package:X1-DFN1006-2
Operating Temperature - Junction:-65°C ~ 125°C
