BAT46W-TP

BAT46W-TP

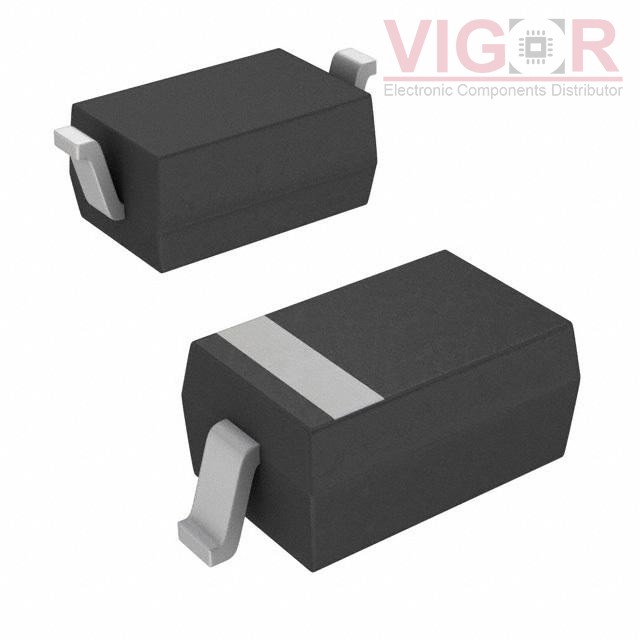

Image is for reference,
please contact us to get the real picture

Part No :

BAT46W-TP

Manufacturer
Micro Commercial Components (MCC)
Description
DIODE SCHOTTKY 100V 75MA SOD123
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
BAT46W-TP PDF
Availability
8325 pieces
Unit Price
$0.40000

Current price of BAT46W-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAT46W-TP Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):100 V
Current - Average Rectified (Io):75mA
Voltage - Forward (Vf) (Max) @ If:450 mV @ 10 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:5 µA @ 75 V
Capacitance @ Vr, F:10pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:SOD-123
Supplier Device Package:SOD-123
Operating Temperature - Junction:-55°C ~ 125°C
