SB180

SB180

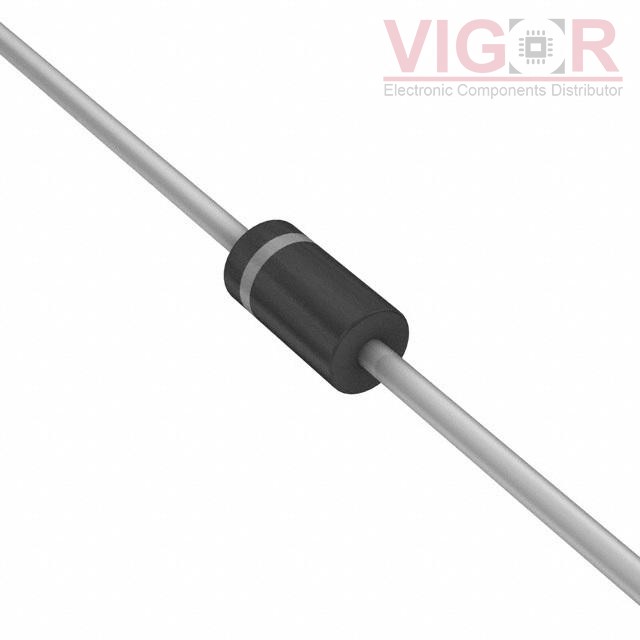

Image is for reference,
please contact us to get the real picture

Part No :

SB180

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
DIODE SCHOTTKY 80V 1A DO204AL
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
SB180 PDF
Availability
4496 pieces
Unit Price
$0.44000

Current price of SB180 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SB180 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):80 V
Current - Average Rectified (Io):1A
Voltage - Forward (Vf) (Max) @ If:850 mV @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:500 µA @ 80 V
Capacitance @ Vr, F:110pF @ 4V, 1MHz
Mounting Type:Through Hole
Package / Case:DO-204AL, DO-41, Axial
Supplier Device Package:DO-204AL (DO-41)
Operating Temperature - Junction:-60°C ~ 125°C
