BAS70LP-7B

BAS70LP-7B

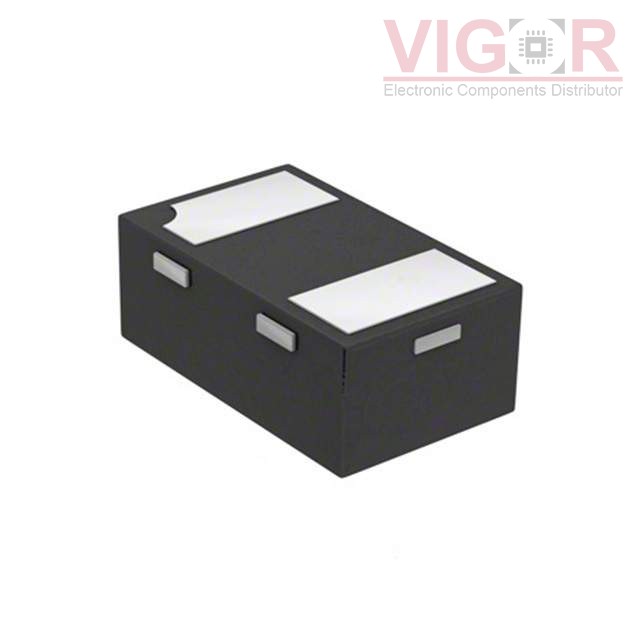

Image is for reference,
please contact us to get the real picture

Part No :

BAS70LP-7B

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
DIODE SCHTTKY 70V 70MA X1DFN1006
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
BAS70LP-7B PDF
Availability
10748 pieces
Unit Price
$0.39000

Current price of BAS70LP-7B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAS70LP-7B Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):70 V
Current - Average Rectified (Io):70mA (DC)
Voltage - Forward (Vf) (Max) @ If:960 mV @ 15 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):1.6 ns
Current - Reverse Leakage @ Vr:10 µA @ 70 V
Capacitance @ Vr, F:1pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:0402 (1006 Metric)
Supplier Device Package:X1-DFN1006-2
Operating Temperature - Junction:-65°C ~ 150°C
