SB560-E3/73

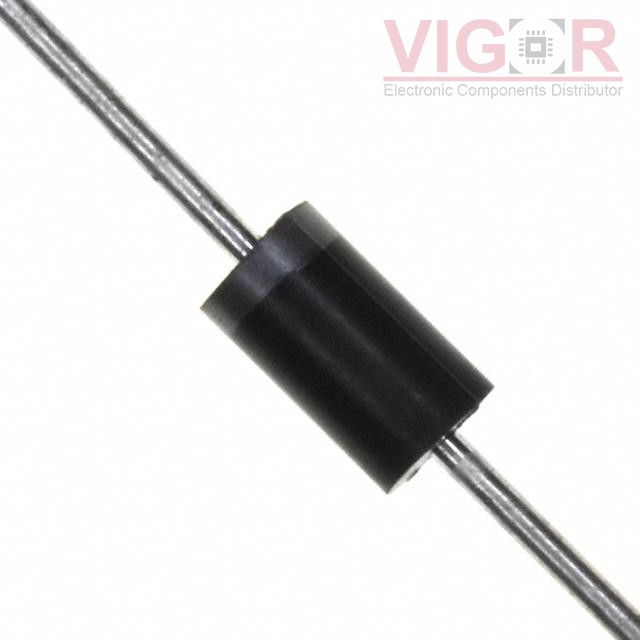

Image is for reference,
please contact us to get the real picture

Part No :: SB560-E3/73

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: DIODE SCHOTTKY 60V 5A DO201AD

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: SB560-E3/73 PDF

Availability: 0 pieces

Unit Price: ~~$0.64000~~

Current price of SB560-E3/73 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SB560-E3/73 Specifications

Type	Description
Series:	-
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	60 V
Current - Average Rectified (Io):	5A
Voltage - Forward (Vf) (Max) @ If:	650 mV @ 5 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	500 µA @ 60 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	DO-201AD, Axial
Supplier Device Package:	DO-201AD
Operating Temperature - Junction:	-65°C ~ 150°C

Please confirm the specifications of the products when ordering.
