CD214A-B120R

Image is for reference,
please contact us to get the real picture

Part No :: CD214A-B120R

Manufacturer: J.W. Miller / Bourns

Description: DIO SBD VRRM 20V 1A SMA

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: CD214A-B120R PDF

Availability: 0 pieces

Unit Price: ~~$0.07673~~

Current price of CD214A-B120R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CD214A-B120R Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	500 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	200 µA @ 20 V
Capacitance @ Vr, F:	110pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	2-SMD, No Lead
Supplier Device Package:	2-SMD
Operating Temperature - Junction:	-55°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

1SS133M R0G

DIODE GEN PURP 90V 150MA DO34

HOT

VS-25F40M

DIODE GEN PURP 400V 25A DO203AA

HOT

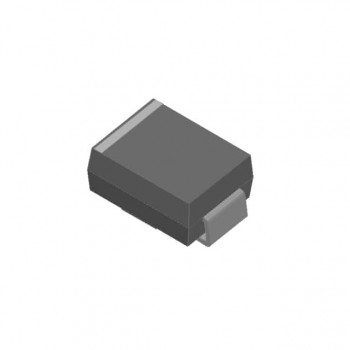

SS810-F1-0000
