NSR05301MX4T5G

NSR05301MX4T5G

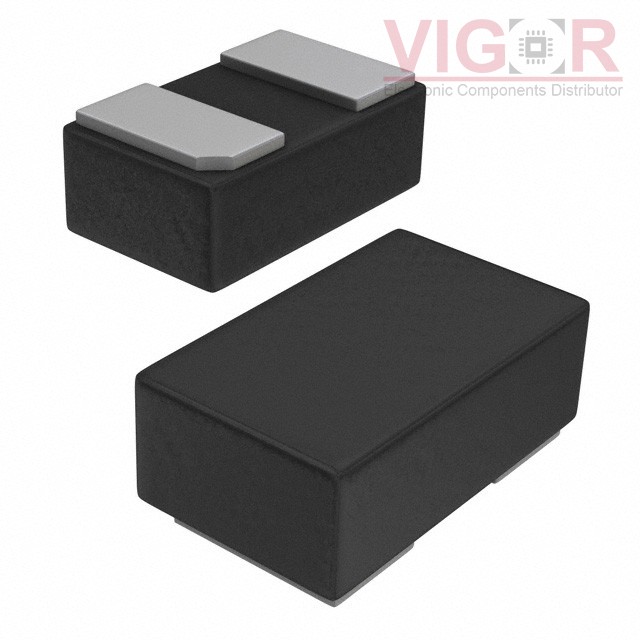

Image is for reference,
please contact us to get the real picture

Part No :

NSR05301MX4T5G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
01005_TRENCH_SCHOTTKY_30V
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
NSR05301MX4T5G PDF
Availability
2147483647 pieces
Unit Price
$0.49000

Current price of NSR05301MX4T5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NSR05301MX4T5G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io):500mA (DC)
Voltage - Forward (Vf) (Max) @ If:800 mV @ 500 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):11 ns
Current - Reverse Leakage @ Vr:100 µA @ 30 V
Capacitance @ Vr, F:19pF @ 5V, 1MHz
Mounting Type:Surface Mount
Package / Case:01005 (0402 Metric)
Supplier Device Package:2-X4DFN (0.45x0.24)
Operating Temperature - Junction:-55°C ~ 125°C
