MCL103B

MCL103B

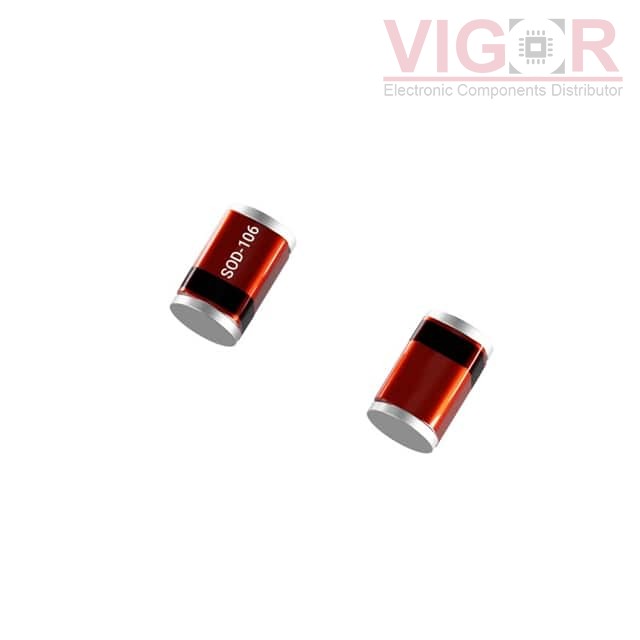

Image is for reference,
please contact us to get the real picture

Part No :

MCL103B

Manufacturer
Diotec Semiconductor
Description
SCHOTTKY SOD-106 30V 0.2A
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
MCL103B PDF
Availability
32500 pieces
Unit Price
$0.08670

Current price of MCL103B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MCL103B Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io):350mA
Voltage - Forward (Vf) (Max) @ If:600 mV @ 200 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):10 ns
Current - Reverse Leakage @ Vr:5 µA @ 20 V
Capacitance @ Vr, F:50pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:2-SMD, No Lead
Supplier Device Package:MicroMelf
Operating Temperature - Junction:-55°C ~ 125°C
