SMS560-3G

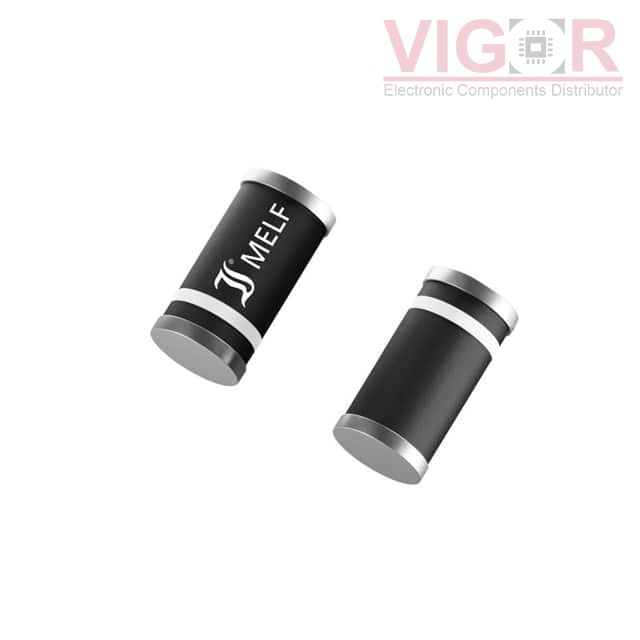

Image is for reference,
please contact us to get the real picture

Part No :: SMS560-3G

Manufacturer: Diotec Semiconductor

Description: SCHOTTKY MELF 60V 5A

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: SMS560-3G PDF

Availability: 0 pieces

Unit Price: ~~$0.18870~~

Current price of SMS560-3G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMS560-3G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	60 V
Current - Average Rectified (Io):	5A
Voltage - Forward (Vf) (Max) @ If:	550 mV @ 5 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	80 µA @ 60 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	DO-213AB, MELF
Supplier Device Package:	MELF DO-213AB
Operating Temperature - Junction:	-50°C ~ 150°C

Please confirm the specifications of the products when ordering.
