SD560BTR

SD560BTR

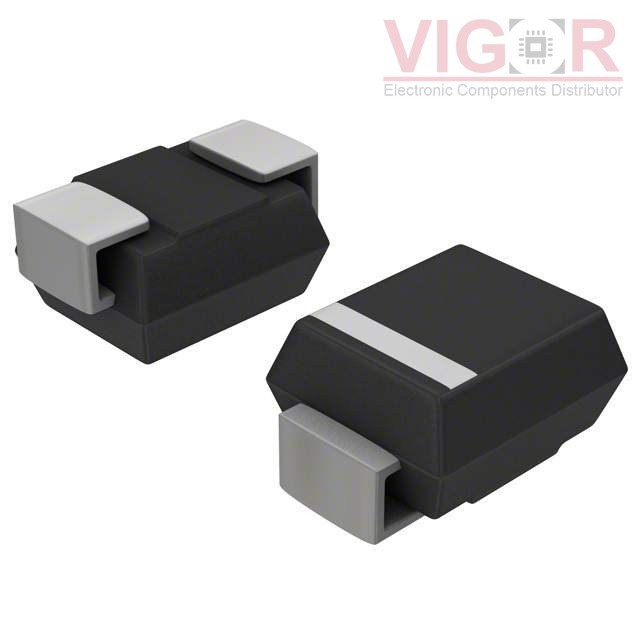

Image is for reference,
please contact us to get the real picture

Part No :

SD560BTR

Manufacturer
SMC Diode Solutions
Description
DIODE GEN PURP 600V 5A SMB
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
SD560BTR PDF
Availability
90662 pieces
Unit Price
$0.44000

Current price of SD560BTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SD560BTR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):600 V
Current - Average Rectified (Io):5A
Voltage - Forward (Vf) (Max) @ If:1.2 V @ 5 A
Speed:Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:9 µA @ 600 V
Capacitance @ Vr, F:50pF @ 4V, 1MHz
Mounting Type:Surface Mount
Package / Case:DO-214AA, SMB
Supplier Device Package:SMB
Operating Temperature - Junction:-65°C ~ 175°C
