VS-243NQ100PBF

VS-243NQ100PBF

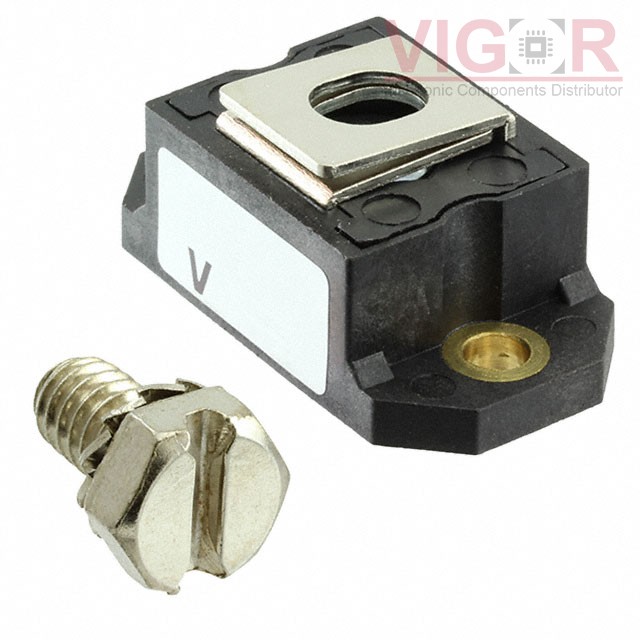

Image is for reference,
please contact us to get the real picture

Part No :

VS-243NQ100PBF

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE SCHOTTKY 100V 240A D-67
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
VS-243NQ100PBF PDF
Availability
0 pieces
Unit Price
$33.12000

Current price of VS-243NQ100PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VS-243NQ100PBF Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):100 V
Current - Average Rectified (Io):240A
Voltage - Forward (Vf) (Max) @ If:950 mV @ 240 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:6 mA @ 100 V
Capacitance @ Vr, F:5500pF @ 5V, 1MHz
Mounting Type:Chassis Mount
Package / Case:D-67 HALF-PAK
Supplier Device Package:D-67
Operating Temperature - Junction:-55°C ~ 175°C
