NSR10F40NXT5G

NSR10F40NXT5G

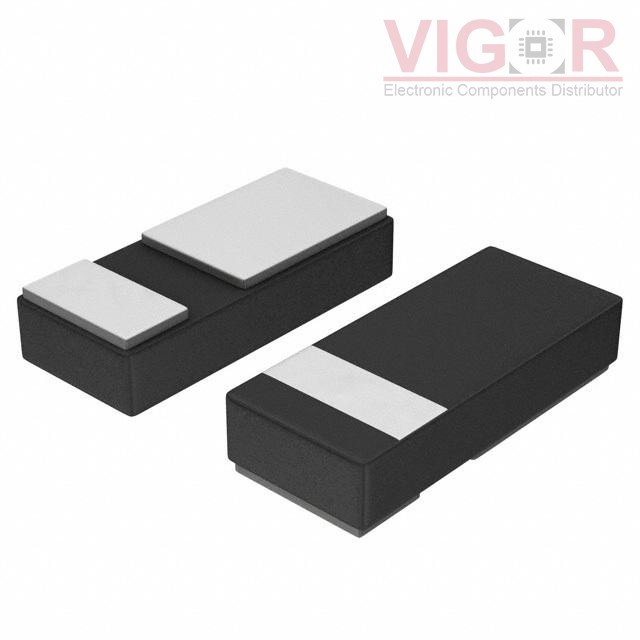

Image is for reference,
please contact us to get the real picture

Part No :

NSR10F40NXT5G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
DIODE SCHOTTKY 40V 1A 2DSN
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
NSR10F40NXT5G PDF
Availability
30219 pieces
Unit Price
$0.48000

Current price of NSR10F40NXT5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NSR10F40NXT5G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):40 V
Current - Average Rectified (Io):1A (DC)
Voltage - Forward (Vf) (Max) @ If:490 mV @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:100 µA @ 40 V
Capacitance @ Vr, F:-
Mounting Type:Surface Mount
Package / Case:2-XDFN
Supplier Device Package:2-DSN (1.4x0.6)
Operating Temperature - Junction:150°C (Max)
