TSPB5H120S S2G

TSPB5H120S S2G

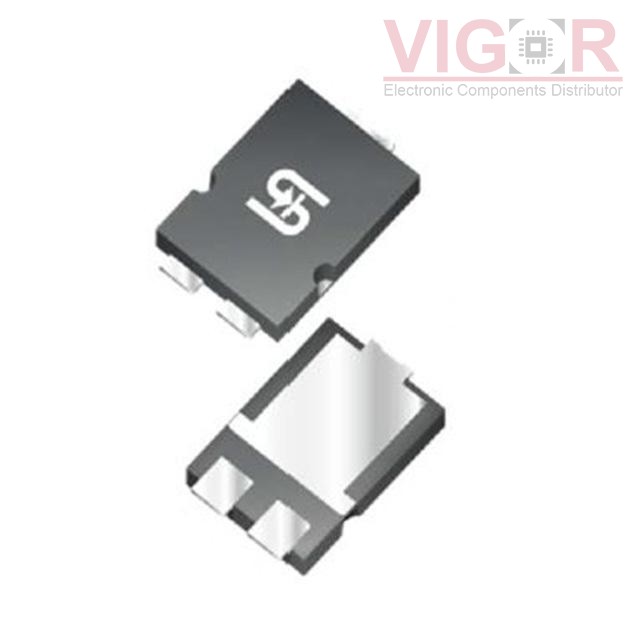

Image is for reference,
please contact us to get the real picture

Part No :

TSPB5H120S S2G

Manufacturer
TSC (Taiwan Semiconductor)
Description
DIODE SCHOTTKY 120V 5A SMPC4.0
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
TSPB5H120S S2G PDF
Availability
0 pieces
Unit Price
$0.22777

Current price of TSPB5H120S S2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSPB5H120S S2G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):120 V
Current - Average Rectified (Io):5A
Voltage - Forward (Vf) (Max) @ If:740 mV @ 5 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:150 µA @ 120 V
Capacitance @ Vr, F:-
Mounting Type:Surface Mount
Package / Case:TO-277, 3-PowerDFN
Supplier Device Package:SMPC4.0
Operating Temperature - Junction:-55°C ~ 150°C
