CD214A-B120LR

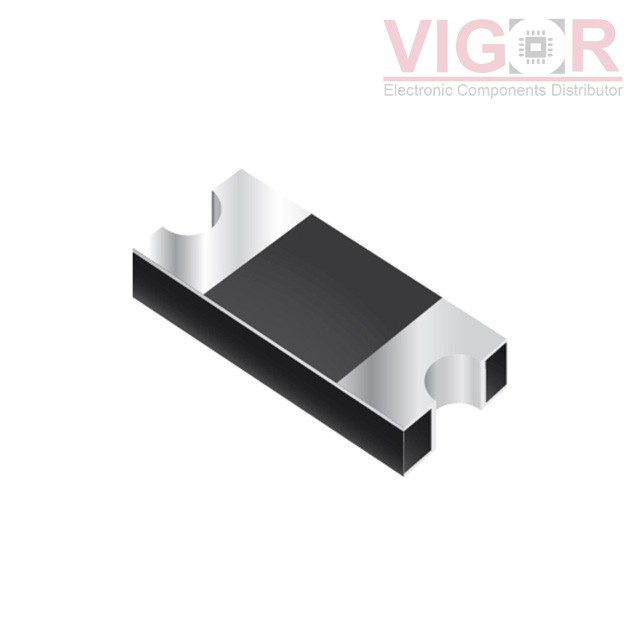

Image is for reference,
please contact us to get the real picture

Part No :: CD214A-B120LR

Manufacturer: J.W. Miller / Bourns

Description: DIO SBD VRRM 20V 1A SMA

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 08 - Aug 12 2025

DataSheet: CD214A-B120LR PDF

Availability: 0 pieces

Unit Price: ~~$0.14250~~

Current price of CD214A-B120LR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CD214A-B120LR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	380 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	1 mA @ 20 V
Capacitance @ Vr, F:	110pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	2-SMD, No Lead
Supplier Device Package:	2-SMD
Operating Temperature - Junction:	-55°C ~ 125°C
