PMEG2002ESF,315

PMEG2002ESF,315

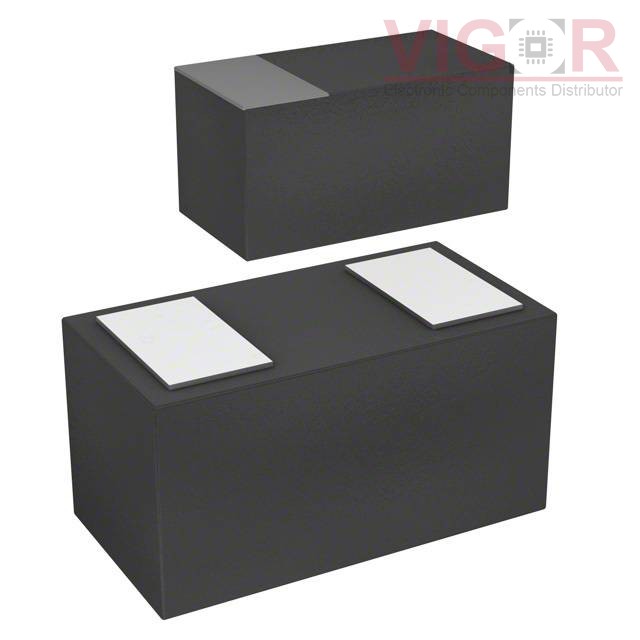

Image is for reference,
please contact us to get the real picture

Part No :

PMEG2002ESF,315

Manufacturer
Nexperia
Description
DIODE SCHOT 20V 200MA DSN0603-2
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 27 - Aug 31 2025
DataSheet
PMEG2002ESF,315 PDF
Availability
1461 pieces
Unit Price
$0.29000

Current price of PMEG2002ESF,315 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PMEG2002ESF,315 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):20 V
Current - Average Rectified (Io):200mA
Voltage - Forward (Vf) (Max) @ If:490 mV @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):1.9 ns
Current - Reverse Leakage @ Vr:3.5 µA @ 20 V
Capacitance @ Vr, F:25pF @ 1V, 1MHz
Mounting Type:Surface Mount
Package / Case:0201 (0603 Metric)
Supplier Device Package:DSN0603-2
Operating Temperature - Junction:125°C (Max)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
