DNA30E2200PA

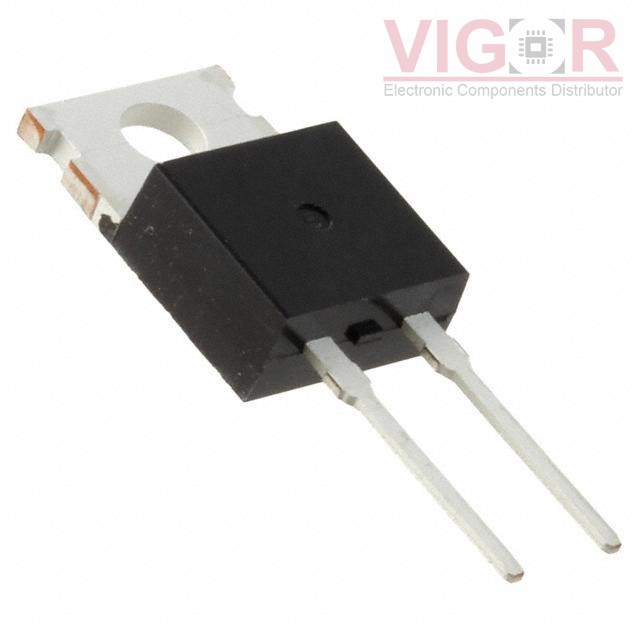

Image is for reference,
please contact us to get the real picture

Part No :: DNA30E2200PA

Manufacturer: Wickmann / Littelfuse

Description: DIODE GEN PURP 2.2KV 30A TO220AC

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 07 - Aug 11 2025

DataSheet: DNA30E2200PA PDF

Availability: 0 pieces

Unit Price: ~~$3.83000~~

Current price of DNA30E2200PA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DNA30E2200PA Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	2200 V
Current - Average Rectified (Io):	30A
Voltage - Forward (Vf) (Max) @ If:	1.26 V @ 30 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	40 µA @ 2200 V
Capacitance @ Vr, F:	7pF @ 700V, 1MHz
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	TO-220AC
Operating Temperature - Junction:	-55°C ~ 175°C

Please confirm the specifications of the products when ordering.
