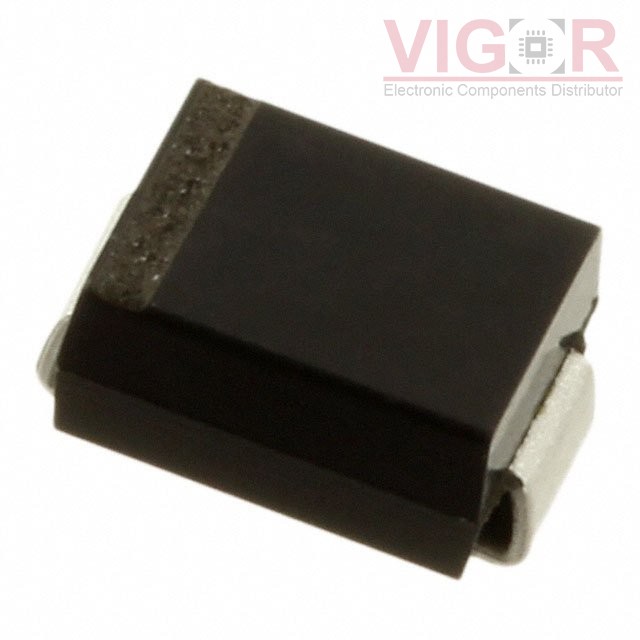

CMSH3-20M BK PBFREE

CMSH3-20M BK PBFREE

Image is for reference,
please contact us to get the real picture

Part No :

CMSH3-20M BK PBFREE

Manufacturer
Central Semiconductor
Description
DIODE SCHOTTKY 20V 3A SMB
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
CMSH3-20M BK PBFREE PDF
Availability
0 pieces
Unit Price
$0.34452

Current price of CMSH3-20M BK PBFREE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CMSH3-20M BK PBFREE Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):20 V
Current - Average Rectified (Io):3A
Voltage - Forward (Vf) (Max) @ If:550 mV @ 3 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:500 µA @ 20 V
Capacitance @ Vr, F:139pF @ 4V, 1MHz
Mounting Type:Surface Mount
Package / Case:DO-214AA, SMB
Supplier Device Package:SMB
Operating Temperature - Junction:-65°C ~ 150°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT S115FA

S115FA

DIODE SCHOTTKY 150V 1A SOD123FA
HOT SGL1-20

SGL1-20

SCHOTTKY DO-213AA 20V 1A

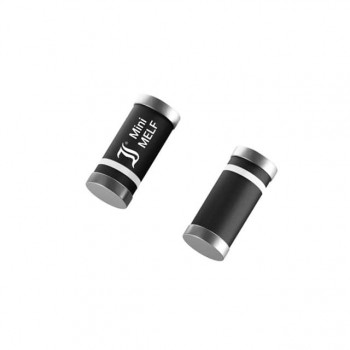

HOT EAL1A
