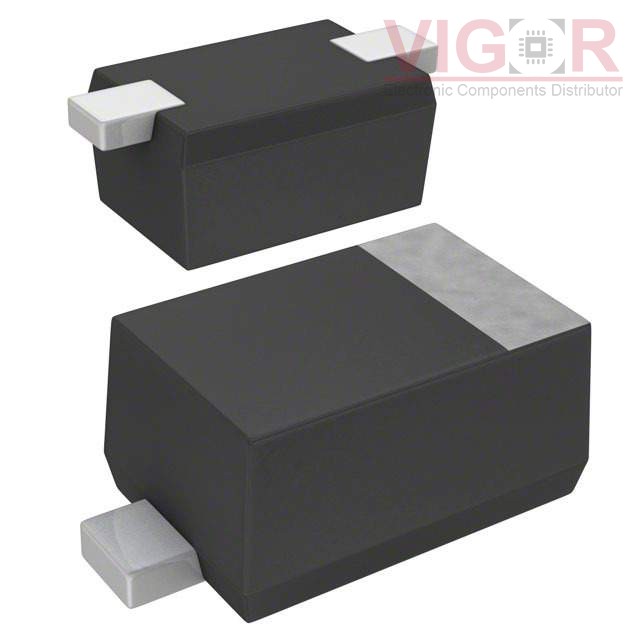

DB2S31100L

DB2S31100L

Image is for reference,
please contact us to get the real picture

Part No :

DB2S31100L

Manufacturer
Panasonic
Description
DIODE SCHOTTKY 30V 200MA SSMINI2
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
DB2S31100L PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of DB2S31100L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DB2S31100L Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Discontinued at Digi-Key
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io):200mA
Voltage - Forward (Vf) (Max) @ If:560 mV @ 200 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):2.2 ns
Current - Reverse Leakage @ Vr:5 µA @ 30 V
Capacitance @ Vr, F:6pF @ 10V, 1MHz
Mounting Type:Surface Mount
Package / Case:SC-79, SOD-523
Supplier Device Package:SSMini2-F5-B
Operating Temperature - Junction:125°C (Max)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MBR0530T3

MBR0530T3

DIODE SCHOTTKY 30V 500MA SOD123
HOT B150-13

B150-13

DIODE SCHOTTKY 50V 1A SMA

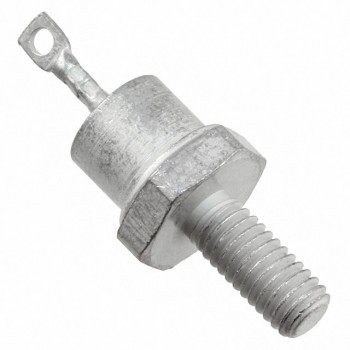

HOT UES706HR2
