SMD120HE-TP

SMD120HE-TP

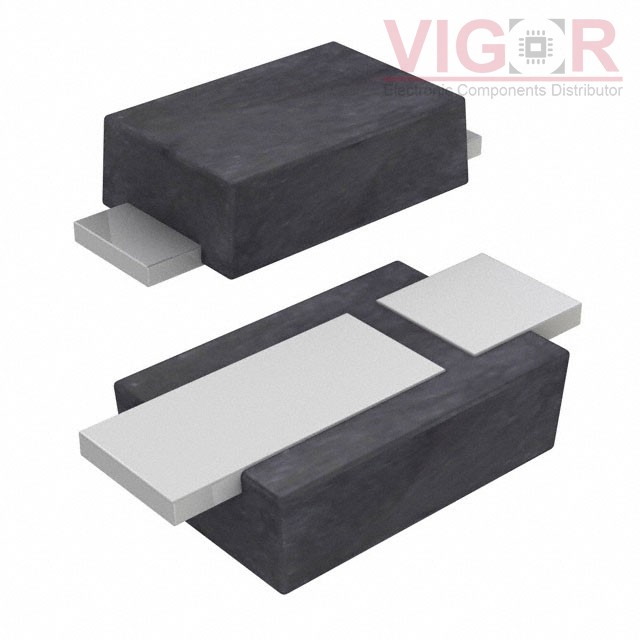

Image is for reference,
please contact us to get the real picture

Part No :

SMD120HE-TP

Manufacturer
Micro Commercial Components (MCC)
Description
DIODE SCHOTTKY 200V 1A SOD123HE
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
SMD120HE-TP PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SMD120HE-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMD120HE-TP Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):200 V
Current - Average Rectified (Io):1A
Voltage - Forward (Vf) (Max) @ If:900 mV @ 2 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:500 µA @ 200 V
Capacitance @ Vr, F:-
Mounting Type:Surface Mount
Package / Case:SOD-123H
Supplier Device Package:SOD-123HE
Operating Temperature - Junction:-55°C ~ 150°C
