SD103N10S10PV

SD103N10S10PV

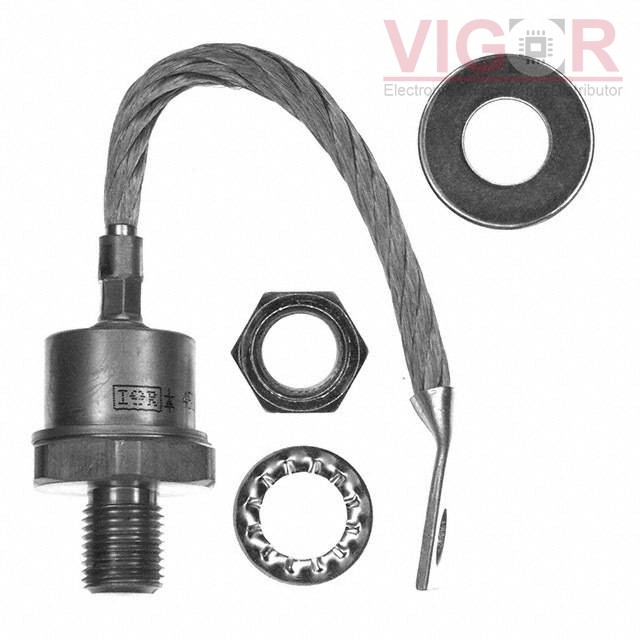

Image is for reference,
please contact us to get the real picture

Part No :

SD103N10S10PV

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE GEN PURP 1KV 110A DO205
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
SD103N10S10PV PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SD103N10S10PV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SD103N10S10PV Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):1000 V
Current - Average Rectified (Io):110A
Voltage - Forward (Vf) (Max) @ If:2.23 V @ 345 A
Speed:Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):1 µs
Current - Reverse Leakage @ Vr:35 mA @ 1000 V
Capacitance @ Vr, F:-
Mounting Type:Stud Mount
Package / Case:DO-205AC, DO-30, Stud
Supplier Device Package:DO-205AC (DO-30)
Operating Temperature - Junction:-40°C ~ 125°C
