CDBK0520L

CDBK0520L

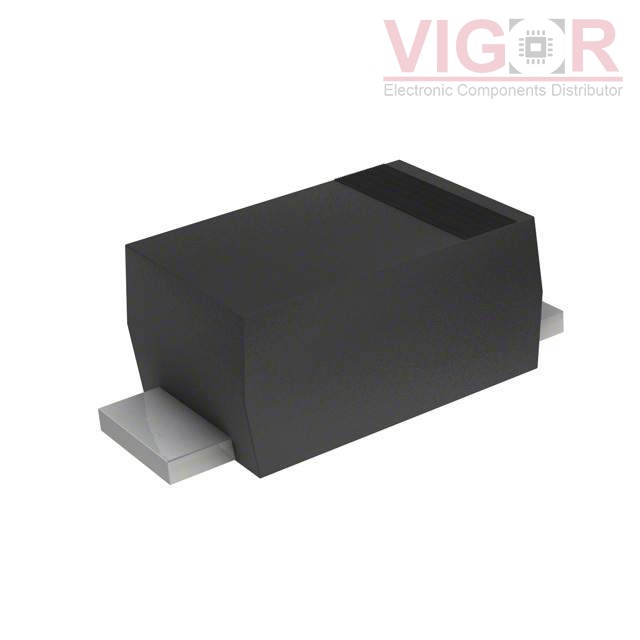

Image is for reference,
please contact us to get the real picture

Part No :

CDBK0520L

Manufacturer
Comchip Technology
Description
DIODE SCHOTTKY 20V 500MA SOD123F
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
CDBK0520L PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CDBK0520L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDBK0520L Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):20 V
Current - Average Rectified (Io):500mA
Voltage - Forward (Vf) (Max) @ If:385 mV @ 500 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):22 ns
Current - Reverse Leakage @ Vr:250 µA @ 20 V
Capacitance @ Vr, F:170pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:SOD-123F
Supplier Device Package:SOD-123F
Operating Temperature - Junction:125°C (Max)
